Logs

How to query Astra, the supported syntax, and using the Astra Grafana app to search logs.

Query syntax

Astra supports the Lucene query syntax, and a full reference can be found in the org.apache.lucene.queryparser.classic Lucene Javadocs. A list of common examples can also be found below.

Fields

service:astraQuery

Wildcard

service: astra*

Range

http_code:[400 to 599]

Boolean

AND

http_code:404 AND service:astraQuery

OR

service:astraQuery OR service:astraIndex

NOT

http_code: 404 AND NOT service:astraQuery

Exists

_exists_:http_code

Full-text search

Astra enables full-text search via the indexerConfig.luceneConfig.enableFullTextSearch config option. Enabling this parameter will additionally index all content to an _all field, which then is set as the default query field when none are specified in the query.

Tip: Full-text search will result in more disk usage, due to the additional field indexing.

Regex support

Astra does not currently support regex (regexp) style queries.

Astra Grafana App

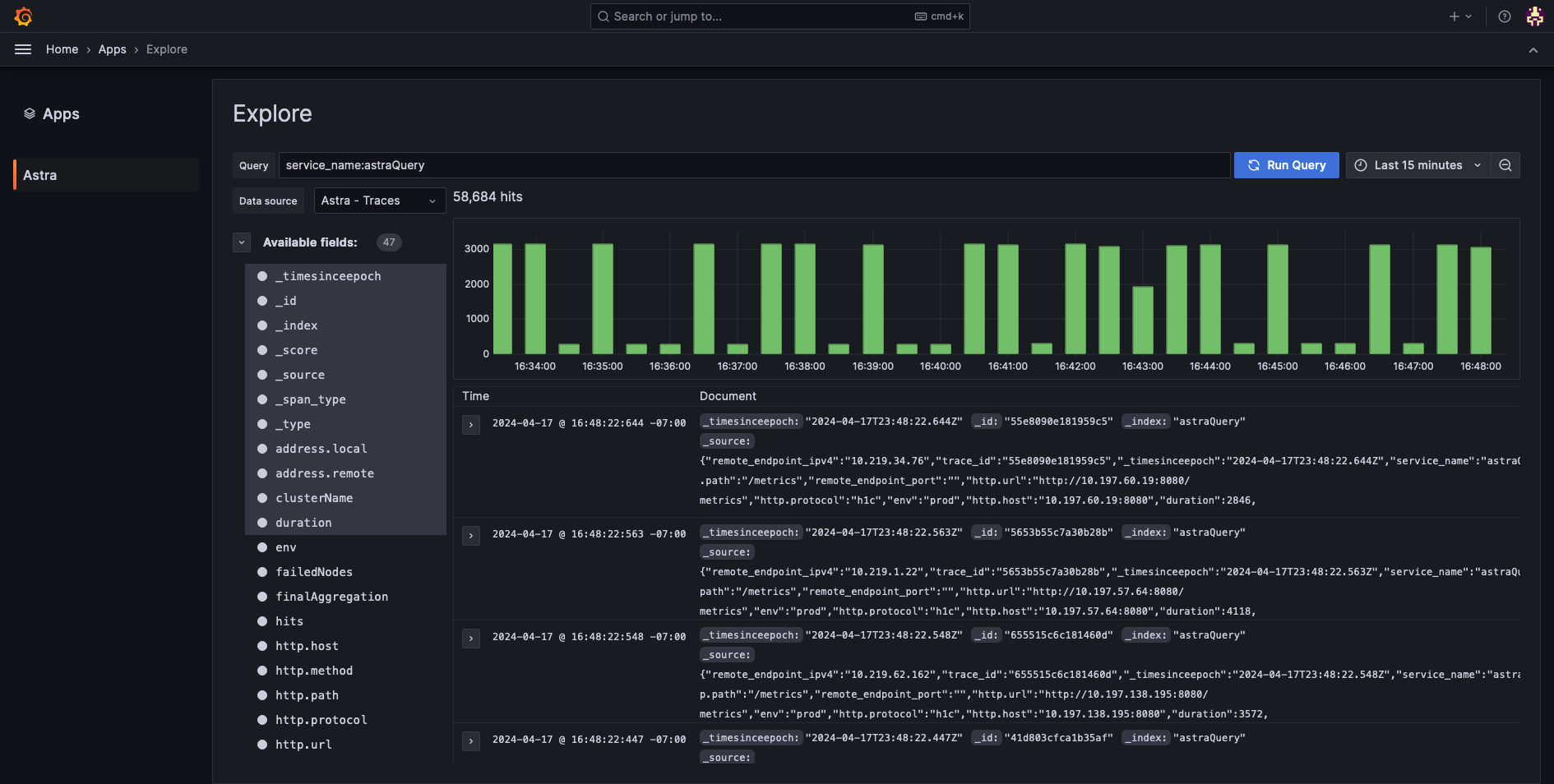

Astra explore Astra explore UI

A native Grafana plugin is available for Astra from Slack at https://github.com/slackhq/slack-astra-app

Installing the Astra Grafana app

  1. Download the latest zip release from the Github releases page.
  2. Extract the zip to your Grafana plugins folder.

Tip: The default location for Grafana plugins is /var/lib/grafana/plugins/

  1. Enable unsigned plugins for both included Astra plugins: slack-astra-app, and slack-astra-app-backend-datasource

Configuration file

Tip: Depending on your OS, your custom configuration file is either the $WORKING_DIR/conf/custom.ini file or the /usr/local/etc/grafana/grafana.ini file.

            <br />

[plugins]
allow_loading_unsigned_plugins = "slack-astra-app,slack-astra-app-backend-datasource"

Environment variable

terminal

export GF_PLUGINS_ALLOW_LOADING_UNSIGNED_PLUGINS="slack-astra-app,slack-astra-app-backend-datasource"

docker-compose

environment:
    GF_PLUGINS_ALLOW_LOADING_UNSIGNED_PLUGINS: "slack-astra-app,slack-astra-app-backend-datasource"
  1. On starting Grafana, a log warning message should be emitted indicating that it is running the unsigned plugins
WARN[06-01|16:45:59] Running an unsigned plugin pluginID=slack-astra-app
  1. Navigate your Grafana install to Administration / Plugins and data / Plugins to enable the Astra plugin. Astra datasource
